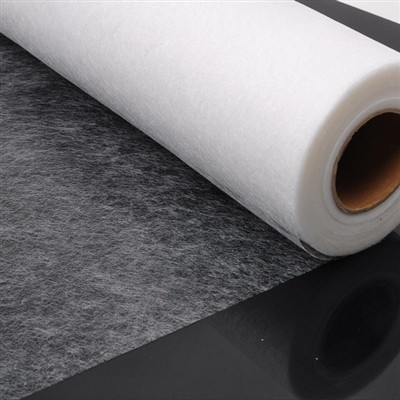

Breathable bonding mesh, functionally distinct from solid adhesive films, is a thermoplastic web structure engineered via melt-blown or reactive extrusion to facilitate material lamination while preserving the macro-porosity of the carrier substrates. By utilizing a non-woven, randomized filament geometry, these mesh films provide high peel strength (15-30 N/25mm) without sealing the interstitial gaps in textile weaves. This allows for the continuous transfer of moisture vapor and air (measured in $cm^3/cm^2/s$), a critical requirement for high-performance footwear uppers and activewear composites where thermal regulation is paramount.
Porous Geometry and Structural Mechanics
The "breathability" of a Hot Melt Web is a direct result of its aperture ratio and fiber diameter. Unlike monolithic films that create a total barrier, the mesh structure consists of intersecting Polyamide (PA), Polyester (PES), or TPU filaments that occupy only 30% to 60% of the total surface area.
Filament Diameter: Typically ranges from 10µm to 50µm to balance adhesive volume with flexibility.
Web Weight (gsm): Lower weights (15-25 gsm) prioritize maximum airflow, while higher weights (40-80 gsm) are deployed for heavy-duty industrial composites requiring superior tensile strength.
Direct factory supply of Oeko-Tex certified breathable mesh.
Request Technical TDS & Sample Rolls
Technical Data: Air Permeability and Bonding Performance
The following table benchmarks the performance of WithTech breathable mesh variants across key industrial metrics:
| Parameter | 20gsm PA Mesh | 30gsm PES Mesh | 25gsm TPU Mesh | Testing Method |
| Melting Point | 95°C – 115°C | 120°C – 130°C | 100°C – 150°C | DSC |
| Air Permeability | >800 $cm^3/cm^2/s$ | >650 $cm^3/cm^2/s$ | >750 $cm^3/cm^2/s$ | ISO 9237 |
| Peel Strength | 18 N/25mm | 22 N/25mm | 25 N/25mm | ISO 11339 |
| Elongation | 50% - 80% | 30% - 50% | 400% - 600% | ASTM D638 |
| Washing Limit | 60°C Cycles | 90°C Cycles | 60°C Cycles | ISO 6330 |
Balancing Adhesion with Moisture Vapor Transmission (MVT)
The primary engineering challenge in [Insert Link: Mesh film] application is the "saturation point"-the stage where increased adhesive weight inhibits the breathability of the face fabric.
1. Controlled Thermal Flow
During hot-press bonding, the temperature must be calibrated to reach the polymer's softening point without reaching the full fluid state. This ensures the filaments maintain their "web" architecture and do not collapse into a solid film layer.
2. Pressure Management
Nip pressure must be maintained between 2.0 and 4.0 bar. Excessive pressure forces the molten polymer into the fabric's pores, reducing the air permeability of the final composite by up to 40%.
3. Substrate Synergy
Breathable mesh is most effective when paired with open-cell foams or 3D-knit meshes. For instance, using a 15gsm TPU web to bond a 3D-knit upper preserves 90% of the original knit's airflow while providing the structural support required for Tier-1 athletic footwear.
Industrial Application Scopes
Footwear: Lamination of breathable linings and toe-box reinforcements.
Apparel: Bonding of moisture-wicking layers in base-layer sportswear.
Automotive: Headliners and acoustic panels requiring air-exchange capabilities.
Medical: Transdermal patch backings and surgical gown lamination.
FAQ
Q1: How do I choose between PA and PES for a breathable mesh application?
Choose PA (Polyamide) for lower activation temperatures (95°C-115°C) and superior softness. Select PES (Polyester) if the application requires high-temperature washing (90°C) or bonding to PET-based industrial substrates.
Q2: Does your breathable mesh comply with GRS sustainability standards?
Yes. We offer GRS certified versions of our PES mesh made from post-consumer recycled chips. All variants are also Oeko-Tex Standard 100 certified, ensuring zero hazardous chemical migration during thermal processing.
Q3: What is the maximum width available for industrial lamination?
Our standard production width is 150cm, but we can provide custom slitting from 10mm up to 3200mm to accommodate large-scale automotive or filtration composite lines.
